Bradley HU12 Clamp Handle

£6.00

Tax included.

Jockey wheel clamp handle
Suitable for Bradley HU12 3500kg coupling
5/8 x 14 thread

Price: £5.00 + VAT

Knott Clamp Handle - Long

£6.00

Tax included.

Extended length jockey wheel clamp handle
Suitable for Knott couplings up to 3500kg including KF7.5, KF13, KF13E, KF17, KF20, KFG20, KRV20, KFG27, KFG35
M16 x 60 thread

Price: £5.00 + VAT

Knott Clamp Handle - Short

£6.00

Tax included.

Standard length jockey wheel clamp handle
Suitable for Knott couplings up to 3500kg including KF7.5, KF13, KF13E, KF17, KF20, KFG20, KRV20, KFG27, KFG35
M16 x 60 thread

Price: £5.00 + VAT

M12 Trailer Ramp Eye-Bolt & Handle Assy - Ifor Williams

M12 Trailer Ramp Eye-Bolt & Handle Assy - Ifor Williams

£12.00

Tax included.

M12
Suitable for Ifor Williams metric range of GD, GP and GX plant and general duty trailers

Price: £10 + VAT

Spring Bolt Latch

£2.40

Tax included.

Zinc plated finish spring/shoot bolt latch
Suitable for all spring bolts up to 12mm diameter
Drawing dimensions – A=55mm, B=R7, Ø=2×6.5mm & D=3mm

Price: £2.00 + VAT

Spring Bolt - 150mm x 12mm

£6.00

Tax included.

Zinc coated finish
Tapered bolt to aid easier fitting inside latch
Drawing dimensions: A=155mm, B=73mm, C=40x26mm, Ø=12mm, D=41mm, EØ=6.5mm, F=40mm
Stroke 30mm

Price: £5.00 + VAT

Spring Bolt - 170mm x 12mm

£4.20

Tax included.

Zinc coated finish
Tapered bolt to aid easier fitting inside latch
Drawing dimensions: A=170mm, B=73mm, C=40x28mm, Ø=12mm, D=40mm, EØ=7mm, F=30mm
Stroke 28mm

Price: £3.50 + VAT

Spring Bolt - 135mm x 12mm

£3.60

Tax included.

Zinc coated finish
Tapered bolt to aid easier fitting inside latch
Drawing dimensions: A=135mm, B=73mm, C=40x28mm, Ø=12mm, D=40mm, EØ=7mm, F=30mm
Stroke 28mm

Price: £3 + VAT

Spring Bolt - 150mm x 10mm

£3.60

Tax included.

Zinc coated finish
Tapered bolt to aid easier fitting inside latch
Drawing dimensions: A=150mm, B=72mm, C=45x25mm, Ø=10mm, D=40mm, EØ=6.5mm, F=51mm
Stroke 35mm

Price: £3 + VAT

Lockable Aluminium Tool Box - 26" x 9" x 9"

Lockable Aluminium Tool Box - 26" x 9" x 9"

£114.00

Tax included.

External dimensions 660 x 230 x 235mm (26″ x 9″ x 9″)
Aperture 625 x 195mm
No handles
Seal on aperture lip
Aluminium checkerplate boxes for trailer underbody and chassis
Robust welded construction
Integral lock, supplied with 2 keys in lid
Rubber seal to prevent water and dirt ingress
Ideal for the secure storage of tools, straps and coupling locks in trailer applications such as Ifor Williams, Indespension, Brian James, Nugent, Bateson, Hudson, etc.
Also suitable for pick-ups, vans etc.

Price: £95 + VAT

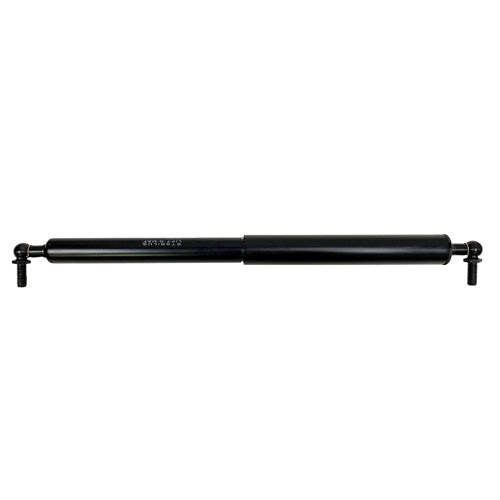

Ramp Gas Spring & Shroud - Ifor Williams P1188

Ramp Gas Spring & Shroud - Ifor Williams P1188

£30.00

Tax included.

P1188 fitted to Ifor Williams livestock trailers with Easyload deck system
Fixings: 2 M8x20 studs on ball joints
Stroke (min): 135
Extension Force: 1200N
Compression Force: 1950N
Integral protective shroud 172×26
From Stabilus

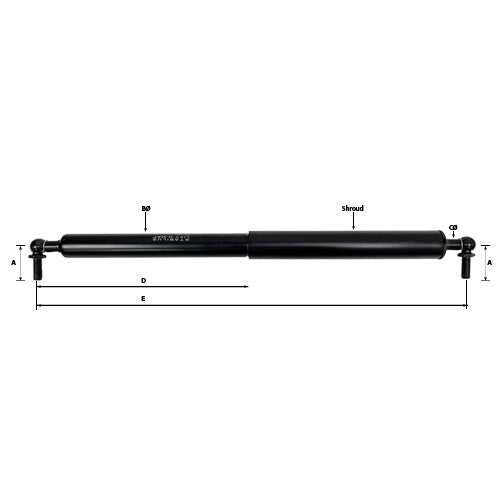

Dimensions on drawing:
- A = 32
- B = 22
- C = 10
- D = 216
- E = 385

Price: £25 + VAT

Ramp Gas Spring - Ifor Williams P1189

£42.00

Tax included.

P1189 fitted to Ifor Williams CT166/167 car transporter and GD metric trailers
Fixings: 2 M10x20 studs on ball joints
Stroke (min): 247
Extension Force: 1700N
Compression Force: 2910N

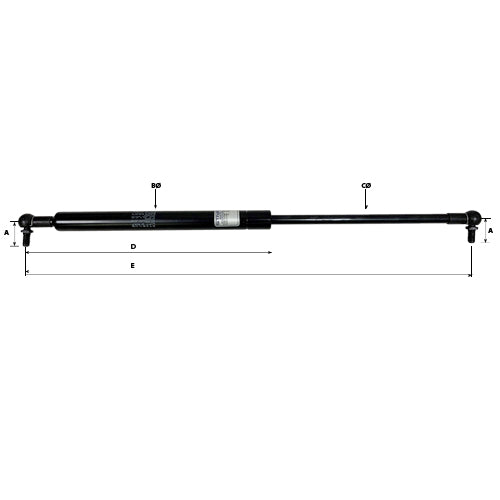

Dimensions on drawing:
- A = 36
- B = 28
- C = 14
- D = 345
- E = 630

Price: £35 + VAT

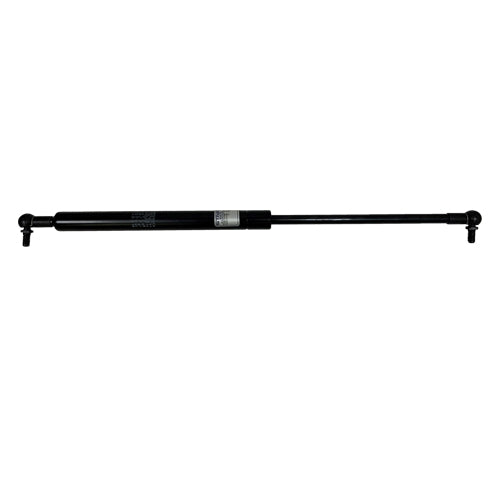

Ramp Gas Spring - Ifor Williams P1193

£39.00

Tax included.

P1193 Ifor Williams HB & HBX, Tiltbed Ramp, Beavertail 6′ Ramp, GP Ramps, GX Ramps, Superseded P1191, parts are interchangeable
Fixings: 2 M10x20 studs on ball joints
Stroke (min): 247
Extension Force: 2100N
Compression Force: 3640N
Dimensions on drawing:
- A = 36
- B = 28
- C = 14
- D = 345
- E = 630

Price: £32.50 + VAT

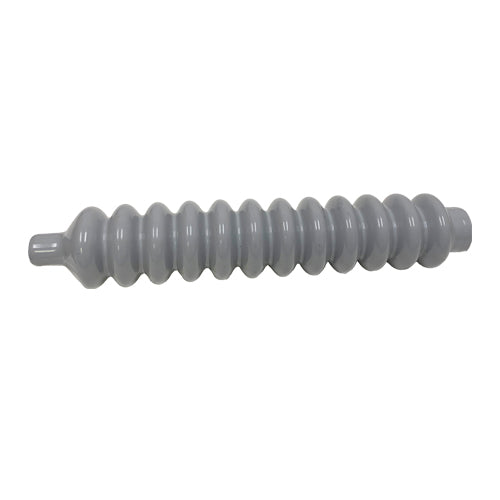

Grey PVC Shroud For Gas Springs

£9.00

Tax included.

Used on GD, GX, GP & GH plant trailers, HB401/403/505/506/510/511/610, HBX403/506/511/510XL horse trailers
Equivalent to Ifor Williams part P1192
UV stabilised

Price: £7.50 + VAT
